What does Fiber Optic PLC Splitter do?
DESCRIPTIONS
The 2x16 PLC fiber optic splitter (TP-3006-CT657A-0216-SCA09) is a versatile solution for optical signal distribution, designed for high-performance networks. It employs Planar Lightwave Circuit (PLC) technology, ensuring accurate signal division across 16 output channels from two input sources. This makes it ideal for applications requiring redundancy or dual-input capability, such as FTTH, PON, and CATV systems.
Encased in a durable cassette housing, this splitter simplifies installation and protects its internal components. The G657A bend-insensitive fiber guarantees superior performance even in tight spaces, and the SC/APC connectors ensure high-precision connections with minimal signal reflection. This combination of features offers consistent performance in a wide range of environments.
Built to meet industry standards, the 2x16 PLC splitter is a reliable, cost-effective solution for current and future network demands. Its compact and durable design ensures seamless integration and long-term operational reliability.
MAIN FEATURES
- 2x16 Configuration: Splits two input signals into sixteen outputs for efficient signal management.
- PLC Technology: Ensures low-loss and uniform signal splitting.
- Compact Cassette Design: Optimized for space-saving and organized deployment.
- G657A Fiber: Bend-insensitive for confined or challenging installations.
- SC/APC Connectors: Delivers low insertion loss and reduced back reflection.
- Low Insertion Loss: Provides minimal signal degradation.
- High Return Loss: Maintains superior signal integrity.
- Wide Wavelength Range: Supports operation from 1260 to 1650 nm.
- Flexible Loose Tube: 0.9mm diameter ensures protection and adaptability.
- Pre-Terminated Connectors: Simplifies setup and reduces installation time.
- Polarization Independence: Delivers consistent performance regardless of polarization.
- High Directivity: Reduces cross-talk between channels.
- Easy Integration: Fits standard optical enclosures and racks.
- Wide Temperature Tolerance: Performs well in extreme environmental conditions.
- Durable Construction: Designed for long-term reliability.
- Lightweight Design: Simplifies handling and installation.
- Cost-Effective: Offers excellent performance at a competitive price.
- Scalable Solution: Suitable for expanding network demands.
- Versatile Applications: Ideal for PON, FTTH, CATV, and broadband systems.

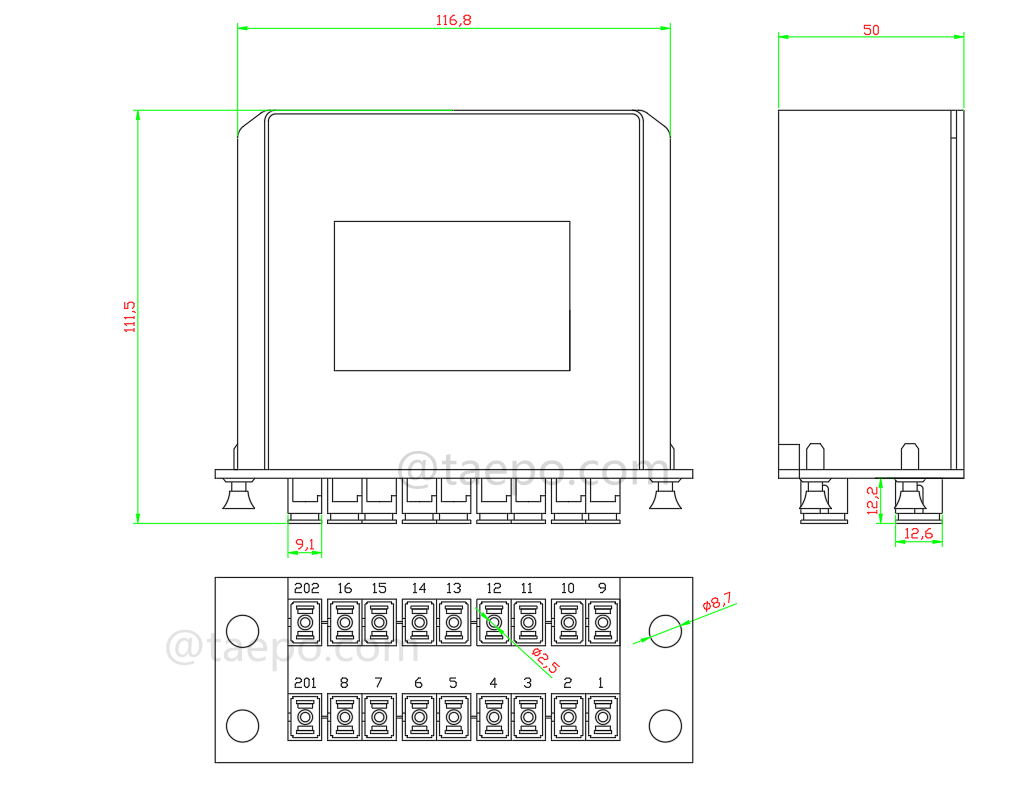

SCHEMATIC DIAGRAMS

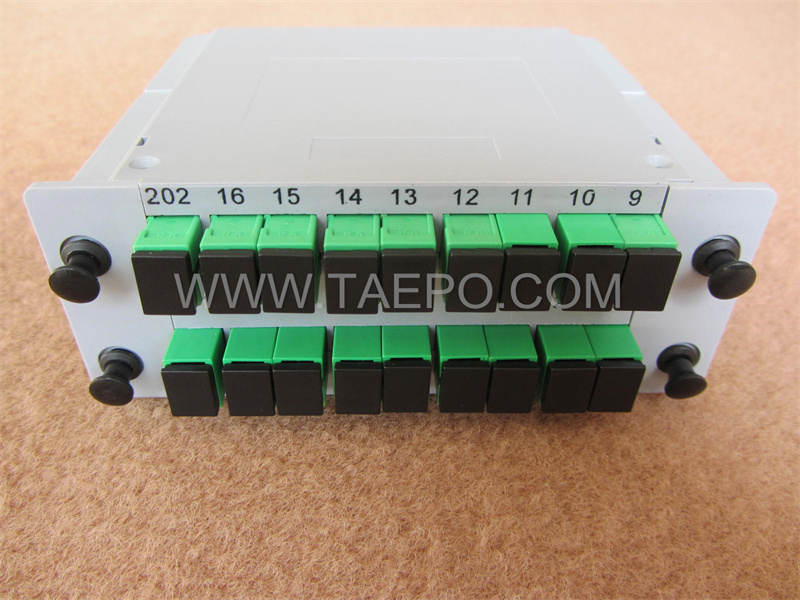

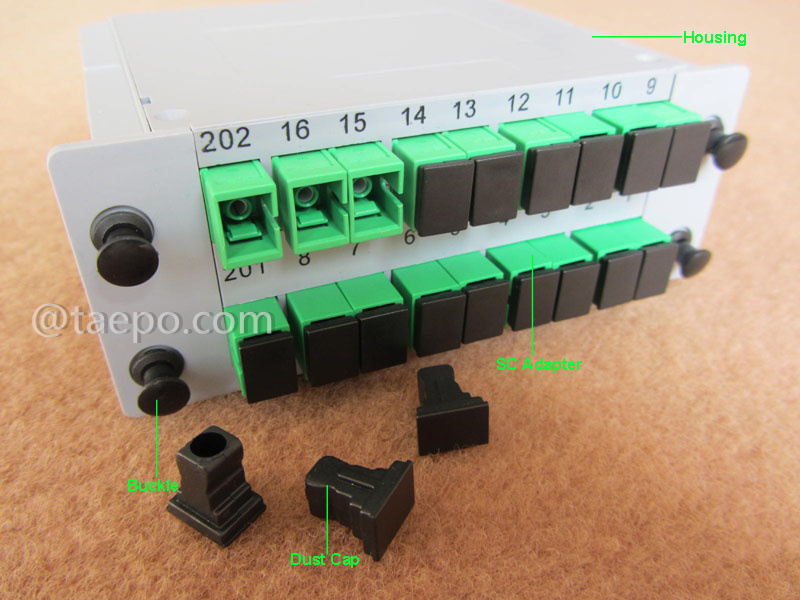

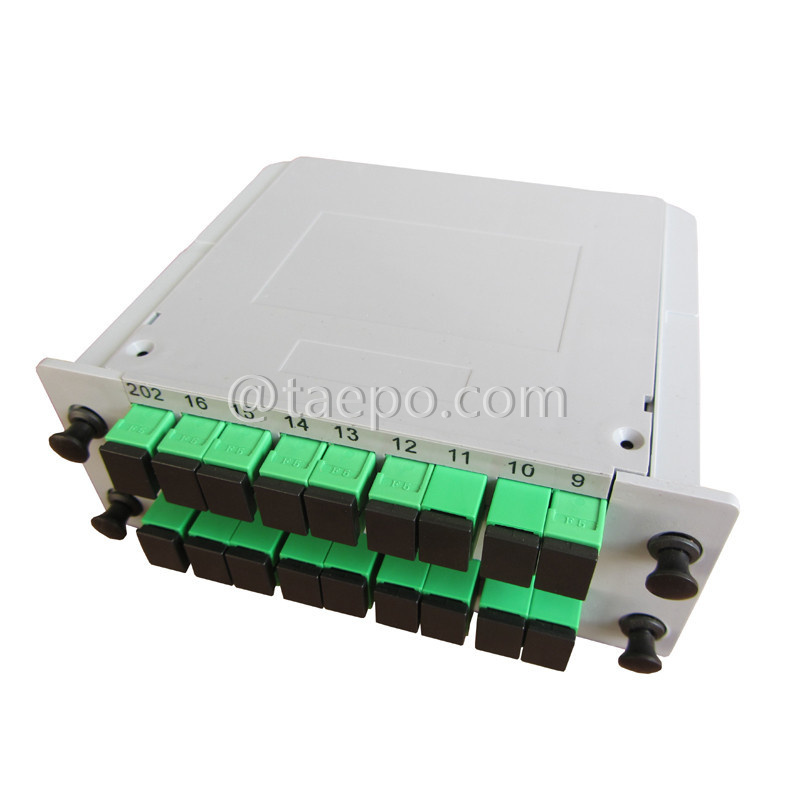

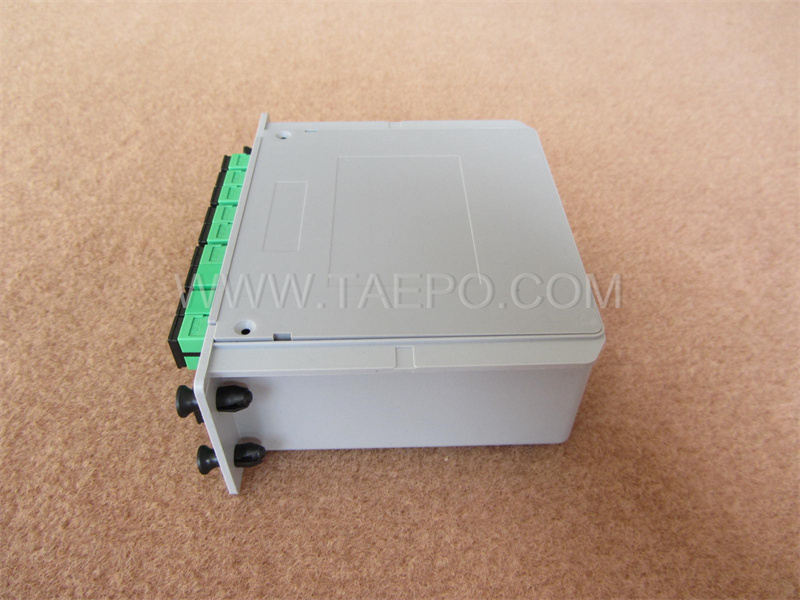

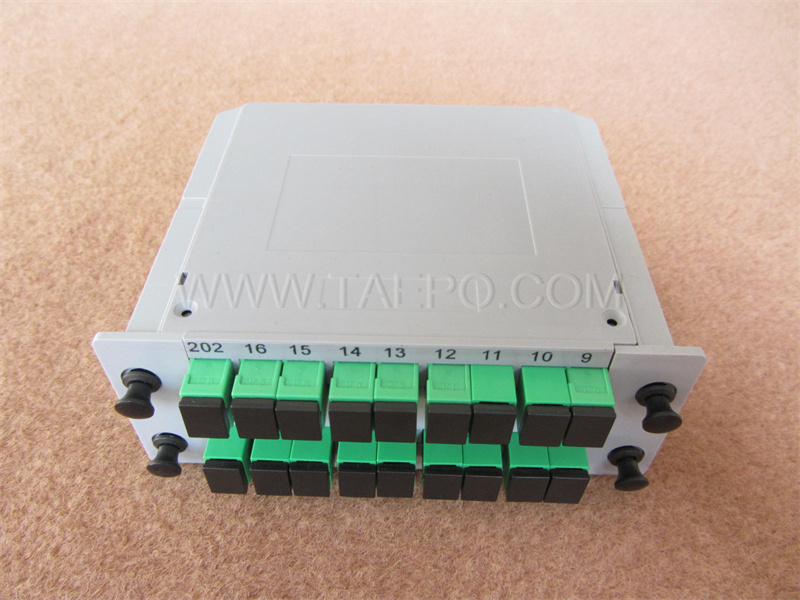

ILLUSTRATION PICTURES

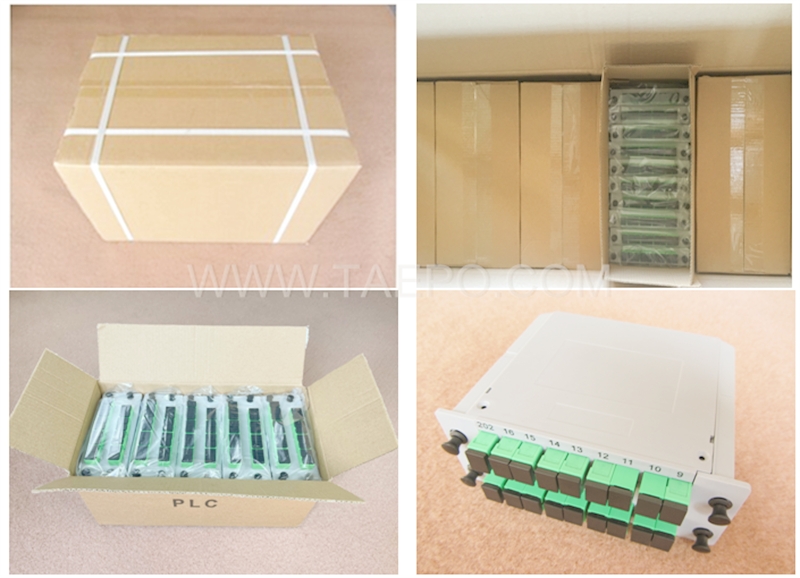

PACKING PICTURES
ORDER DATA
| Item No |
Descriptions |
| TP-3006-CT657A-0216-SCA09 |
Fiber optic splitter, PLC, casette type, G657A, 2x16, 0.9mm loose tube, with SC/APC connector |
